Let the Outside In
Weather protection with natural ventilation and zero energy costs
From £72,500
When your sport thrives on social atmosphere and natural airflow, framed fabric structures deliver essential protection whilst maintaining connection to the outdoors. Perfect for padel's explosive growth and versatile community facilities.
The Open Solution for Social Sports
Choose framed fabric structures when natural ventilation, spectator engagement, and operational simplicity are priorities. Perfect for sports that benefit from fresh air, social atmosphere, and zero mechanical ventilation costs.
Ideal for
Padel tennis operators
Football and rugby training facilities
Multi-sport community venues
Golf driving ranges
Schools with event hosting needs
You should choose framed if you:
Want zero ventilation and cooling costs
Need multiple entry points for events
Value natural atmosphere and acoustics
Require seasonal adaptability
Want a naturally ventilated, zero-energy facility
Why Smart Operators Choose Framed
Zero Ventilation Costs
No fans, no cooling, no mechanical systems required for structural integrity.
Natural Environment
Continuous fresh air circulation maintains player comfort without any mechanical noise or energy use.
Event Ready
Multiple entry points and open sides enable superior crowd flow for competitions and community events.
Seasonal Adaptability
Sliding curtain systems transform from open summer venue to protected winter facility with no specialist equipment.
Architectural Impact
Contemporary designs from geodesic to classic arch create landmark facilities that enhance your venue.
Minimal Maintenance
No fans, filters, or mechanical systems to service. Failure-proof design means lower ongoing costs and zero unplanned downtime.
Quick Installation
10-15 day assembly gets you operational weeks faster than traditional construction.
Column-Free Courts
Perimeter support structure means maximum flexibility for court layouts and configurations.
Tailored to Your Facility
PVC Membrane
Durable weather protection
Up to 40 year lifespan with proper maintenance
UV-resistant coating prevents degradation
Naturally diffuses light to reduce glare
Fire-retardant to B-s2, d0 classification
Galvanised Steel Structure
Engineered for British conditions
Hot-dip galvanised for corrosion resistance
Designed to withstand 100mph+ winds
Column-free spans up to 40m
Modular design allows future expansion
Sliding Side Panels
Complete seasonal adaptability
Open fully for summer ventilation
Close for winter weather protection
Multiple entry points for events
Zero mechanical ventilation costs
Multi-Court Configurations
Optimised for padel and racquet sports
Accommodates 2–8 courts per structure
Maintains social sightlines between courts
Spectator-friendly open atmosphere
Ideal acoustics for coaching
Technical Overview
Structural Performance
Wind rated: 100-120mph
Snow loading: 0.6-1.0kN/m²
Membrane life: 20-40 years
Fire rating: B-s2,d0
Installation
Timeline: 12-20 weeks total
Groundworks: 4-6 weeks
Fabrication: 6-8 weeks
Assembly: 5-10 days
Team size: 6-10 specialists
Operational Benefits
Zero mechanical ventilation costs
No cooling requirements
Minimal maintenance needs
Silent operation
Failure-proof design
Certifications
EN 1090-2 compliant
CE marked components
Eurocode designed
BS EN 13782 standards
Full structural warranties
Four Structural Systems

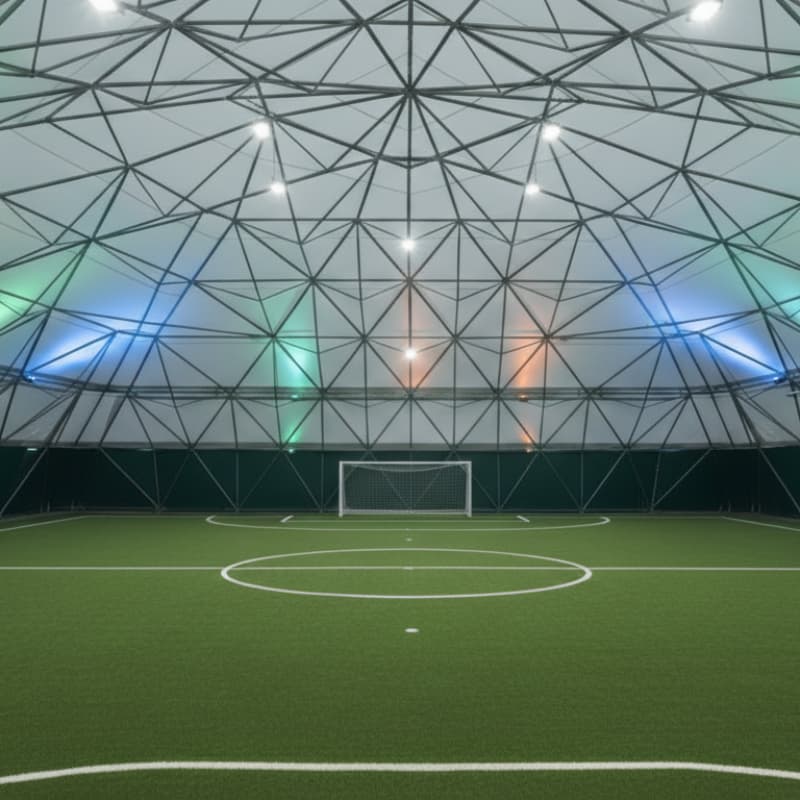

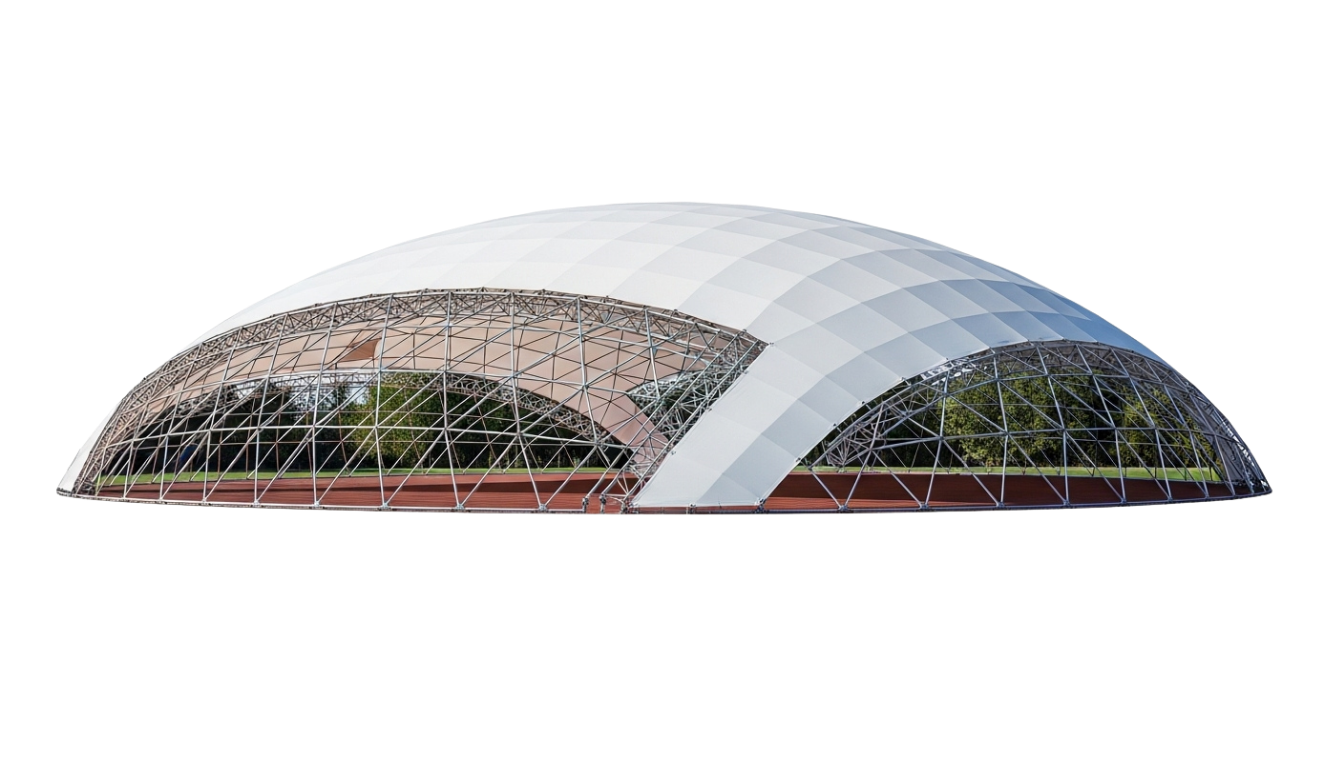

Geodesic Structures – Architectural Excellence
Designed for large-scale, premium venues, geodesic structures deliver exceptional architectural impact while spanning up to 100 metres without internal supports. With a 40-year structural design life, these systems are ideal for 4+ court complexes that demand both performance and visual presence. Precision bolted assembly allows installation to be completed within 10 days, making them a striking yet efficient solution for high-end facilities.

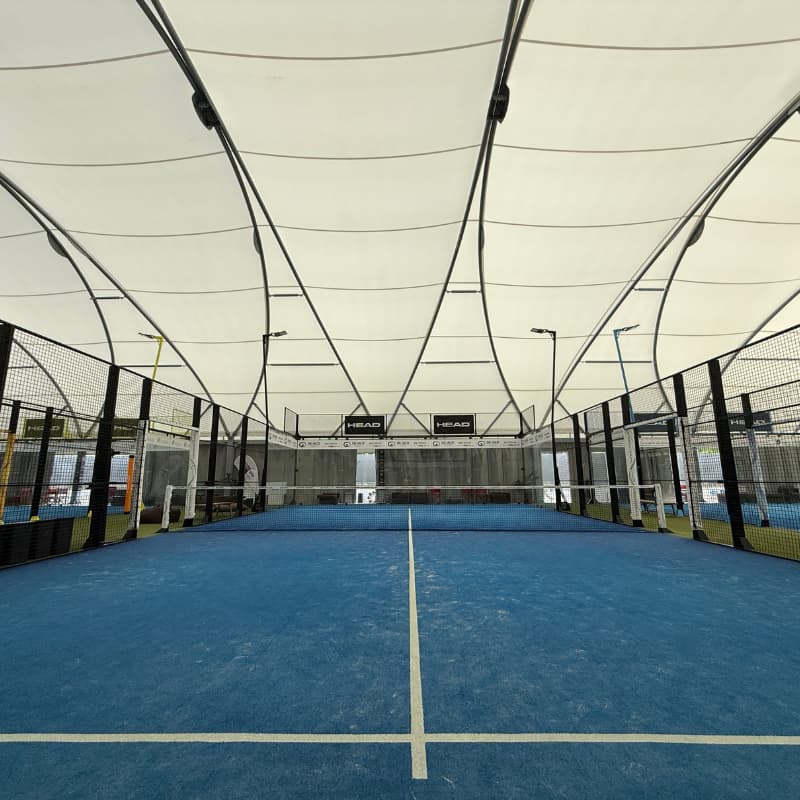

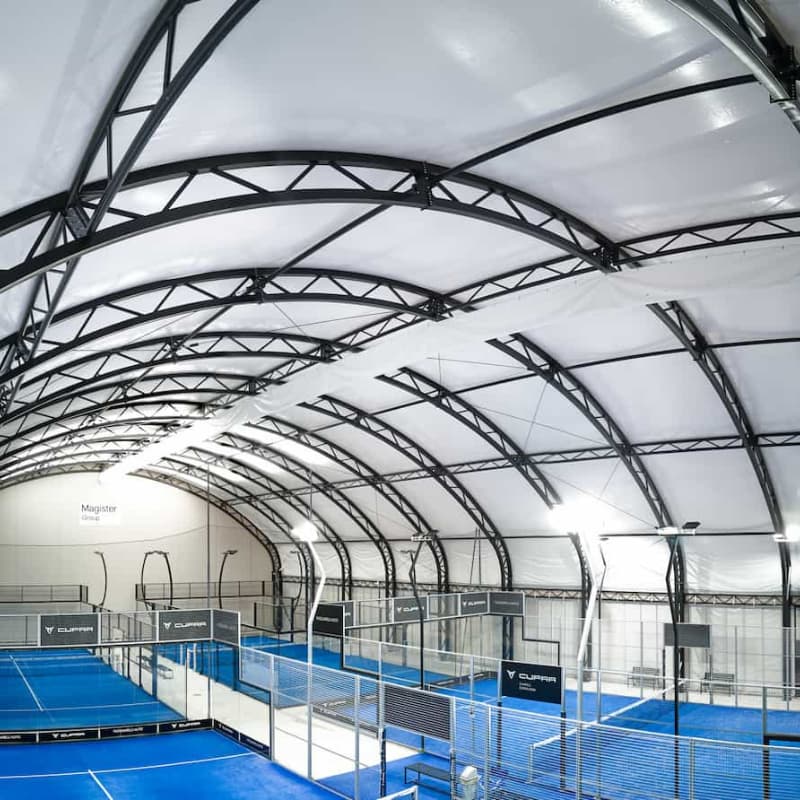

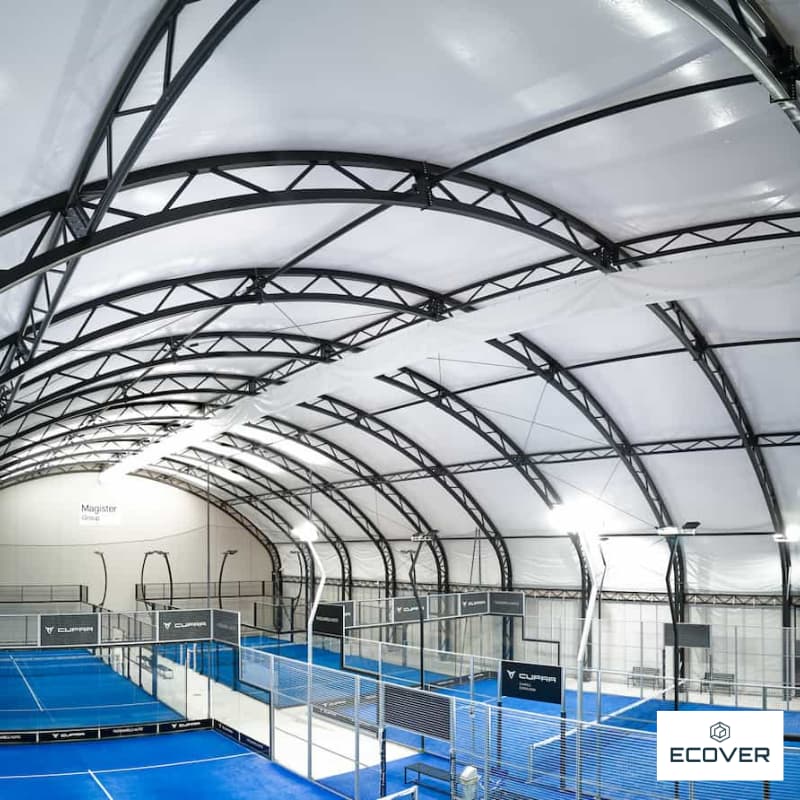

Compound Curve – Padel Perfection
Purpose-built specifically for padel, the compound curve structure is optimised to meet the sport’s unique technical and spatial requirements. With an ideal internal height of 8-11.5 metres for effective lob play, this system enhances both gameplay and spectator experience through panoramic viewing. Available in 2–6 court configurations, it can be fitted with motorised sliding curtains to support year-round play and environmental control.

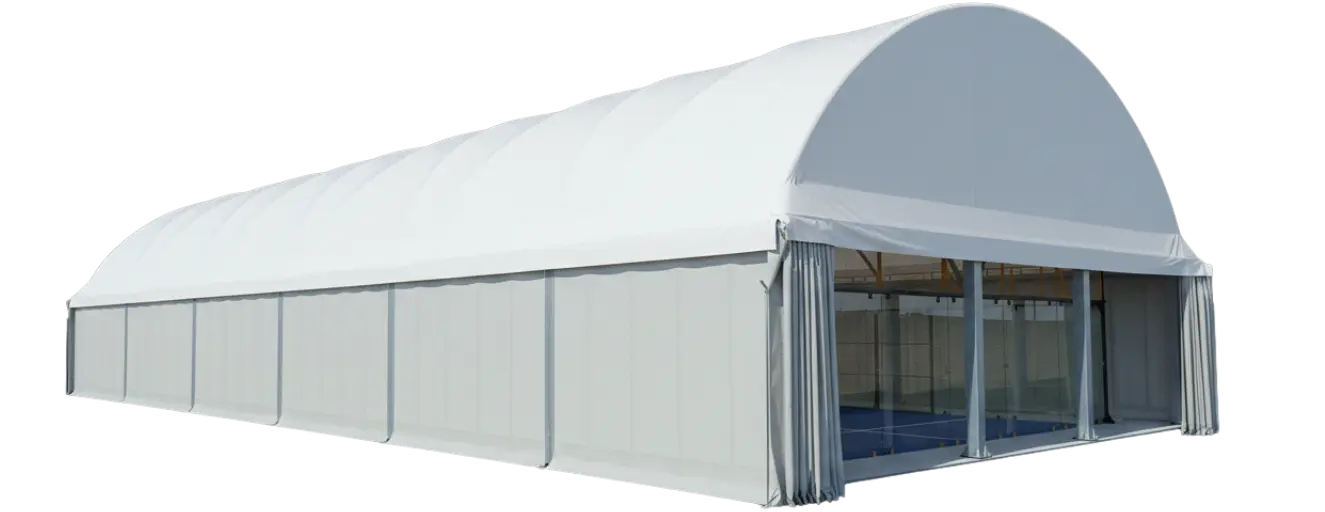

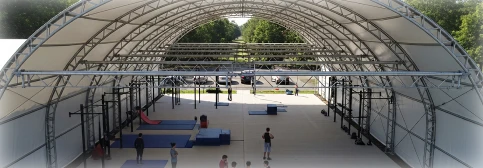

Steel Arch – Proven Performance
A cost-effective and highly versatile solution, the steel arch system offers clear spans from 13 to 40 metres with unlimited length potential. Constructed from hot-dip galvanised steel, it delivers long-term durability and minimal maintenance, making it a popular choice for schools, clubs, and community facilities. Installation is typically completed within 10-15 days, ensuring rapid deployment with reliable performance.

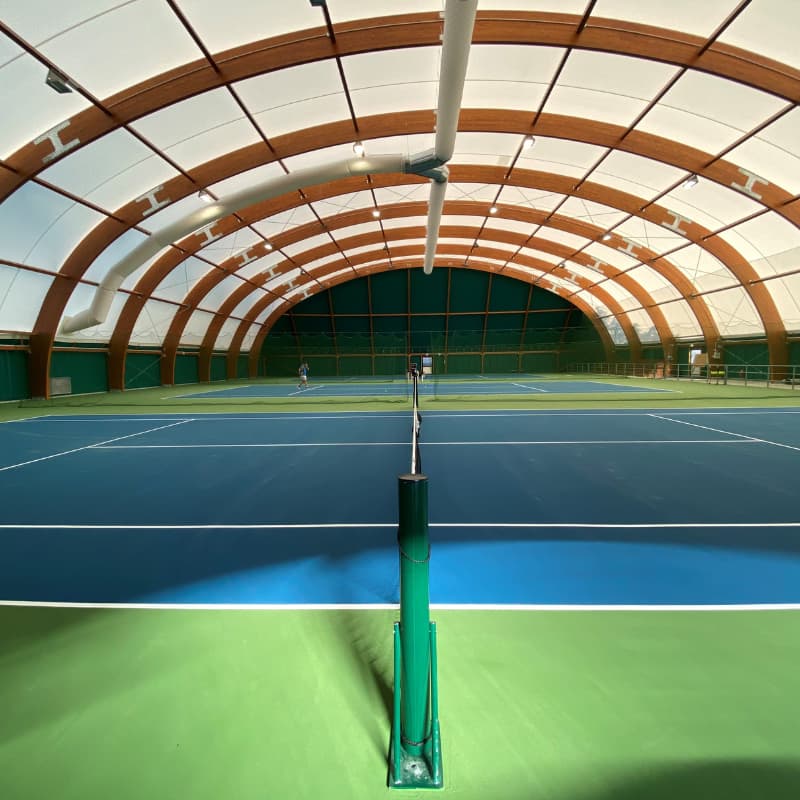

Timber Arch – Natural Elegance
Combining engineering precision with refined aesthetics, the timber arch system uses engineered glulam construction to create warm, natural spaces with clear spans of 15–40 metres. Its premium architectural finish makes it ideal for venues seeking a distinctive, sustainable visual identity, while strong environmental credentials support projects prioritising responsible design and material selection.
Your Open-Air Solution
Four Structural Systems
Classic Arch: Proven steel construction for cost-effective coverage
Compound Curve: Purpose-engineered for padel's unique geometry
Geodesic: Landmark architecture with maximum clear spans
Timber Arch: Natural elegance with sustainable credentials
What Affects Investment:
Structural system selected
Size and configuration
Sidewall specifications
Lighting and features
Site conditions
Typical ROI Timeline
24-48 months typical payback
Reduced operating complexity
Enhanced social atmosphere
Event hosting capability
Architectural differentiation
Frequently Asked Questions
How do framed structures handle rain, wind, and snow?
The roof provides complete rain and snow protection, with structures rated for snow loads up to 1.0kN/m². Sidewalls (open, curtains, or panels) can be configured based on prevailing wind direction and seasonal needs.
What about heating in winter?
Heating systems can be integrated where required. Many facilities find wind protection alone creates comfortable playing conditions.
Can the sliding curtains withstand storms?
Yes, our curtain systems include wind gates and reinforced guide rails. They're designed to handle UK weather conditions when properly secured.
How does natural ventilation work for padel?
The continuous air circulation prevents glass walls from misting and maintains comfortable conditions even during intense matches—crucial for padel's demanding play.
What's the difference between structure types?
Geodesic offers maximum spans and visual impact, Compound Curve is optimised for padel, Steel Arch provides proven cost-effectiveness, and Timber brings natural aesthetics.
Can structures be relocated?
Yes, all our framed structures can be dismantled and relocated, making them ideal for lease situations or changing requirements.
Do we need planning permission?
Yes, but framed structures often receive favourable planning consideration due to their lightweight nature and reduced environmental impact versus traditional buildings.
